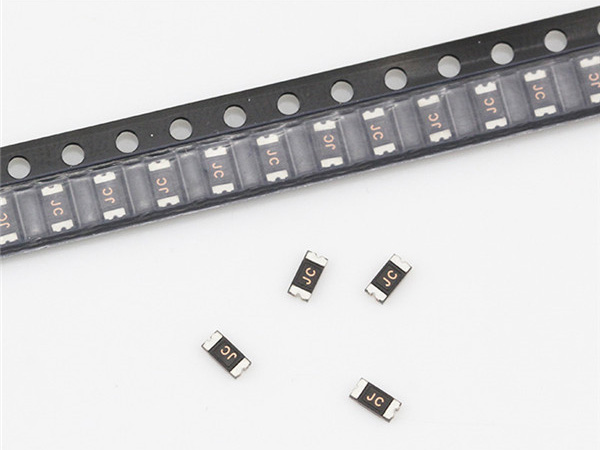

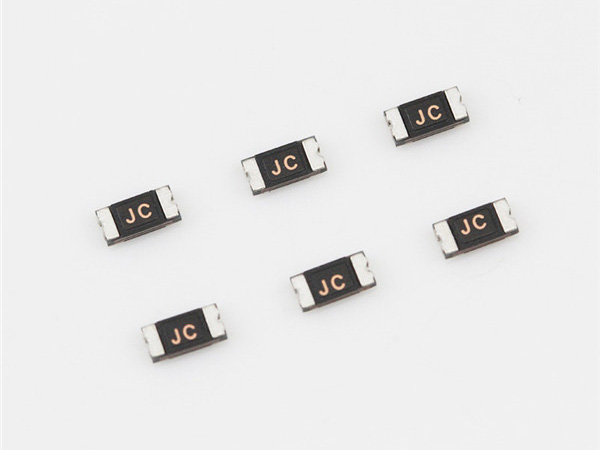

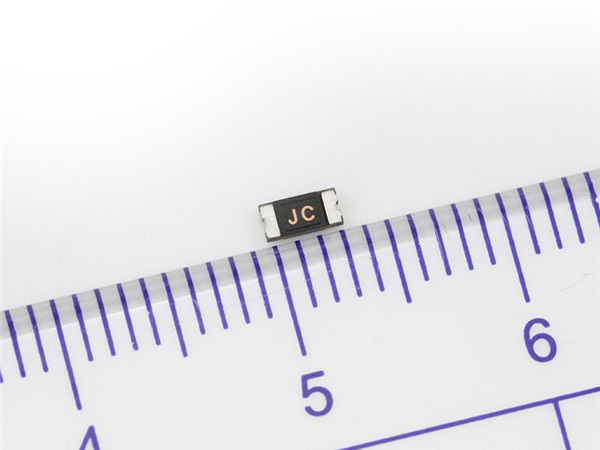

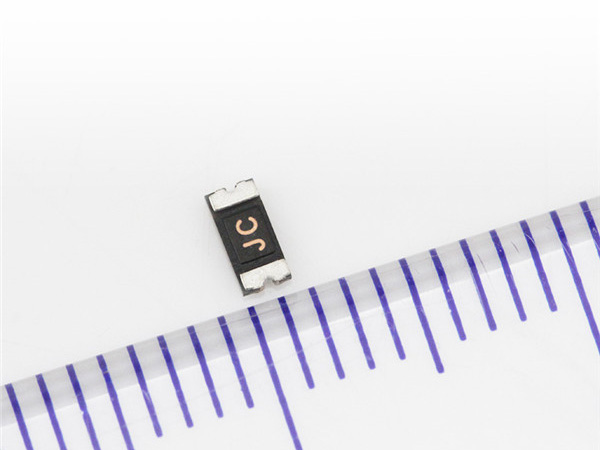

1206SL系列低內阻自恢復保險絲


ASMD1206SL系列提供微型表面貼裝過流保護，保持電流范圍為1.5-6A。 該系列適廣泛應用于空間有限的現代電子產品中。




  •
                                            品牌：
                                            集電通/JTDFUSE
    •

  •
                                            分類：
                                            貼片自恢復保險絲
    •

  •
                                            最大電壓：
                                            6-12V
    •

  •
                                            額定電流：
                                            1.5~6A
    •




































JDTFUSEASMD1206SL規格書
JDTFUSE
電氣特性25℃
Model
Vmax
(Vdc)
Imax
(A)
Ihold
@25℃
(A)
Itrip
@25℃
(A)
Pd
 typ.
 (W)
Maximum Time
To Trip

Resistance
Current
 (A)
Time
(Sec.)
Rimin
 (Ω)
R1max
 (Ω)
ASMD1206SL150
6
50
1.50
3.0
0.8
8.0
5.0
0.010
0.065
ASMD1206SL150-12V
12
50
1.50
3.0
0.8
8.0
5.0
0.010
0.065
ASMD1206SL175
6
50
1.75
3.5
0.8
8.0
5.0
0.010
0.060
ASMD1206SL175-12V
12
50
1.75
3.5
0.8
8.0
5.0
0.010
0.060
ASMD1206SL200
6
50
2.00
4.0
0.8
8.0
5.0
0.008
0.040
ASMD1206SL200-12V
12
50
2.00
4.0
0.8
8.0
5.0
0.008
0.040
ASMD1206SL260
6
50
2.60
5.2
0.8
8.0
5.0
0.004
0.026
ASMD1206SL260-12V
12
50
2.6
5.2
0.8
8.0
5.0
0.004
0.026
ASMD1206SL300
6
50
3.0
6.0
0.8
15.0
2.0
0.004
0.020
ASMD1206SL300-12V
12
50
3.0
6.0
0.8
15.0
2.0
0.004
0.020
ASMD1206SL350
6
50
3.5
7.0
1.0
17.5
2.0
0.004
0.018
ASMD1206SL350-12V
12
50
3.5
7.0
1.0
17.5
2.0
0.004
0.018
ASMD1206SL380
6
50
3.8
7.6
1.0
19.0
2.0
0.004
0.016
ASMD1206SL380-12V
12
50
3.8
7.6
1.0
19.0
2.0
0.004
0.016
ASMD1206SL400
6
50
4.0
8.0
1.0
20.0
2.0
0.004
0.014
ASMD1206SL400-12V
12
50
4.0
8.0
1.0
20.0
2.0
0.004
0.014
ASMD1206SL450
6
50
4.5
9.0
1.0
22.5
2.0
0.002
0.012
ASMD1206SL450-12V
12
50
4.5
9.0
1.0
22.5
2.0
0.002
0.012
ASMD1206SL500
6
50
5.0
10
1.0
25.0
2.0
0.002
0.011
ASMD1206SL500-12V
12
50
5.0
10
1.0
25.0
2.0
0.002
0.011
ASMD1206SL550
6
50
5.5
11
1.2
27.5
2.0
0.002
0.010
ASMD1206SL550-12V
12
50
5.5
11
1.2
27.5
2.0
0.002
0.010
ASMD1206SL600
6
50
6.0
12
1.2
30.0
2.0
0.002
0.009
ASMD1206SL600-12V
12
50
6.0
12
1.2
30.0
2.0
0.002
0.009
ASMD1206SL650
6
50
6.5
13
1.5
32.5
2.0
0.002
0.009
ASMD1206SL650-12V
12
50
6.5
13
1.5
32.5
2.0
0.002
0.009
ASMD1206SL700
6
50
7.0
14
15
35.0
2.0
0.001
0.008
ASMD1206SL700-12V
12
50
7.0
14
1.5
35.0
2.0
0.001
0.008
ASMD1206SL750
6
50
7.5
15
1.5
35.0
5.0
0.001
0.007
ASMD1206SL750-12V
12
50
7.5
15
1.5
35.0
5.0
0.001
0.007

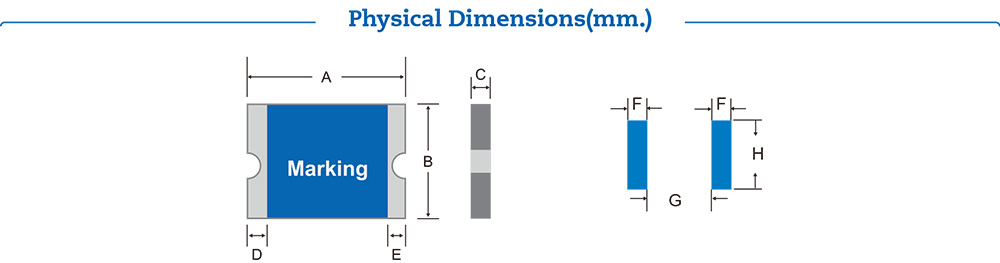

JDTFUSE

Model
A
B
C
D
E
Min.
Max.
Min.
Max.
Min.
Max.
Min.
Min.
ASMD1206SL110
3.0
3.5
1.5
1.8
0.3
0.7
0.15
0.1
ASMD1206SL150
3.0
3.5
1.5
1.8
0.3
0.7
0.15
0.1
ASMD1206SL175
3.0
3.5
1.5
1.8
0.3
0.7
0.15
0.1
ASMD1206SL200
3.0
3.5
1.5
1.8
0.3
0.7
0.15
0.1
ASMD1206SL260
3.0
3.5
1.5
1.8
0.4
1.0
0.15
0.1
ASMD1206SL300
3.0
3.5
1.5
1.8
0.4
1.2
0.15
0.1
ASMD1206SL350
3.0
3.5
1.5
1.8
0.4
1.2
0.15
0.1
ASMD1206SL380
3.0
3.5
1.5
1.8
0.4
1.2
0.15
0.1
ASMD1206SL400
3.0
3.5
1.5
1.8
0.5
1.2
0.15
0.1
ASMD1206SL450
3.0
3.5
1.5
1.8
0.5
1.4
0.15
0.1
ASMD1206SL500
3.0
3.5
1.5
1.8
0.5
1.4
0.15
0.1
ASMD1206SL550
3.0
3.5
1.5
1.8
0.6
1.6
0.15
0.1
ASMD1206SL600
3.0
3.5
1.5
1.8
0.6
1.6
0.15
0.1
ASMD1206SL650
3.0
3.5
1.5
1.8
0.8
1.6
0.15
0.1
ASMD1206SL700
3.0
3.5
1.5
1.8
0.8
1.6
0.15
0.1
